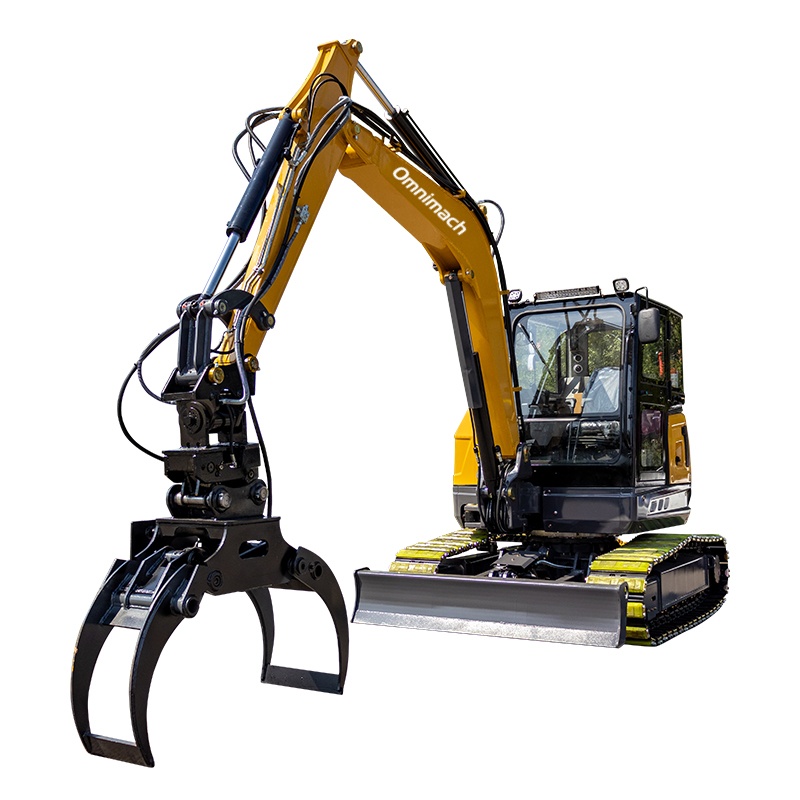

HT65 Crawler Excavator
Product Details
Introduction to HT65 Crawler Excavator
1. High flexibility in narrow spaces: Compact body design allows easy operation in urban alleys, indoor sites and other confined areas.
2. Strong terrain adaptability: Wide tracks and stable chassis ensure stable work on muddy and soft ground, with good obstacle-crossing performance.
3. Wide working range: Suitable for foundation excavation, trenching, loading and various construction scenarios with high efficiency.
4. Reliable power: Equipped with Yanmar/Kubota engine, featuring low fuel consumption, low failure rate and easy maintenance.
5. High efficiency: Fast swing speed, dual travel speeds and side swing function greatly improve operation efficiency.
6. Multifunctional design: Built-in dozer blade integrates digging and leveling functions, with good safety and low transportation cost.
HT65 Crawler Excavator Specifications
| Machine Size | |
| Model | HT65 |
| Overall Length | 5834mm |
| Overall Width | 2000mm |
| Overall Height | 2570mm |
| Track Shoe Width | 400mm |
| Track Length | 2640mm |
| Body Width | 1780mm |
| Operating Weight | 6500KG |
| Engine | Yanmar494/Yanmar498/KubotaV2607 |
| Engine Power | 36.6KW |
| Bucket Capacity | 0.23m³ |
| Travel Speed | 2.2km/h, 4.2km/h |
| Swing Speed | 12r/min |
| Platform Ground Clearance | 706mm |
| Swing Angle | 360° |
| Side Swing Angle | Left 45°, Right 55° |
| Operating Range | |
| Max. Digging Height | 5157mm |
| Max. Unloading Height | 3692mm |
| Max. Digging Depth | 3071mm |
| Max. Digging Reach | 5251mm |
| Dozer Blade Digging Depth | 369mm |
| Dozer Blade Lifting Height | 253mm |
| Fuel Tank Capacity | 30L |
| Hydraulic Tank Capacity | 41L |
