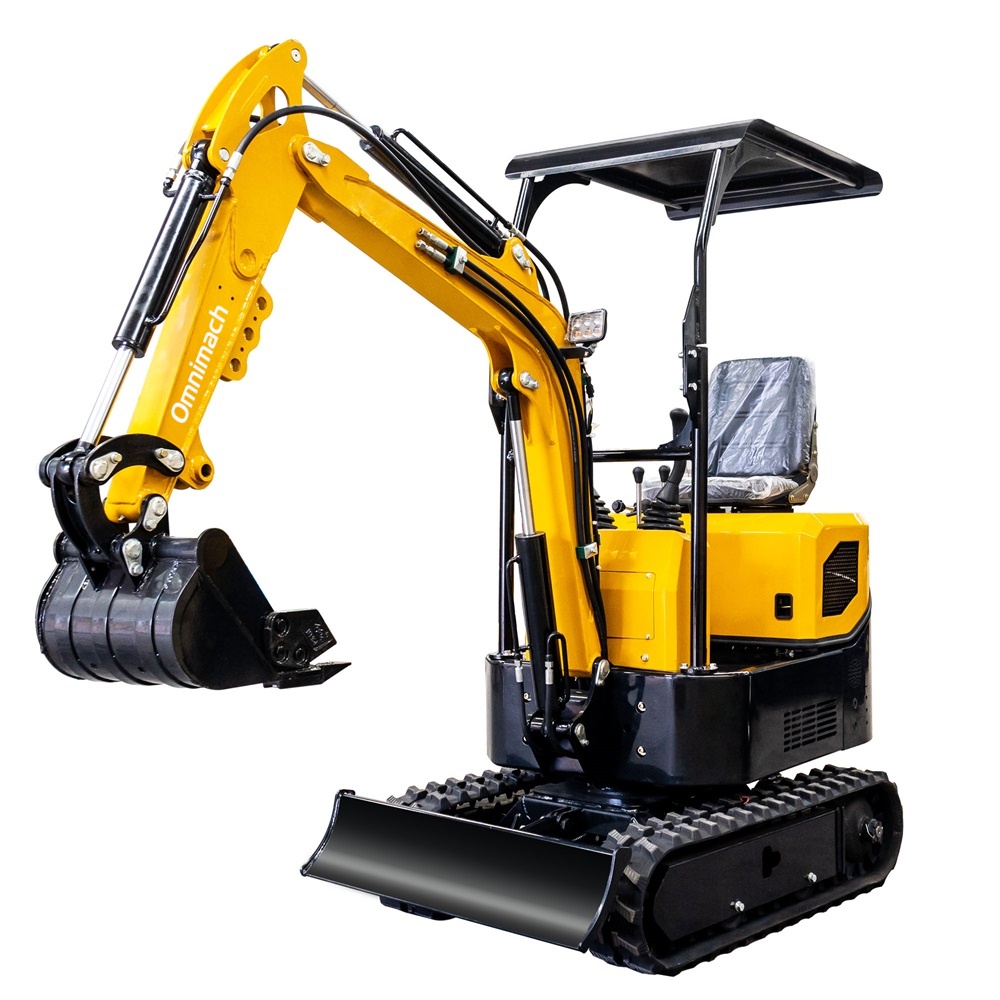

HT10C Micro Excavator
Product Details
Introduction to HT-10C Mini Excavator
High fuel efficiency, ultra power-saving, energy saving and environmental protection
HT-10C Mini Excavator Parameters
|
Model |
HT-10C |
|
Weight |
1000 kg |
|
Bucket Capacity |
0.025 m³ / 120 kg |
|
Bucket Width |
380 mm |
|
Engine |
Changchai (192FAM) |
|
Optional Engine |
BRIGGS＆STRATTON YANMAR |
|
Bore |
Single cylinder, fan cooling |
|
Rated Power |
8.2 kW / 3600 r/min |
|
Main Pump |
G5-6 |
|
Displacement |
6.8 ml/rev |
|
Slewing Motor |
Sanyang (BMRS-250) |
|
Travel Motor |
Sanyang (BMT-245) |
|
Travel Speed |
1.5 km/h |
|
Main Dimensions |
|
|
Overall Dimensions (L x W x H) |
2775 x 930 x 2219 mm |
|
Gauge |
910 mm |
|
Total Track Length |
1230 mm |
|
Platform Ground Clearance |
380 mm |
|
Tail Swing Radius |
784 mm |
|
Chassis Width |
896 mm |
|
Track Width |
180 mm |
|
Chassis Ground Clearance |
132 mm |
|
Track Height |
320 mm |
|
Working Range |
|
|
Digging Depth |
1650 mm |
|
Vertical Digging Depth |
1375 mm |
|
Digging Height |
2610 mm |
|
Unloading Height |
1850 mm |
|
Digging Radius |
2850 mm |
|
Slewing Radius |
1330 mm |
|
Bulldozer Blade Lifting Height |
345 mm |
|
Bulldozer Blade Digging Depth |
255 mm |
