Mini excavator

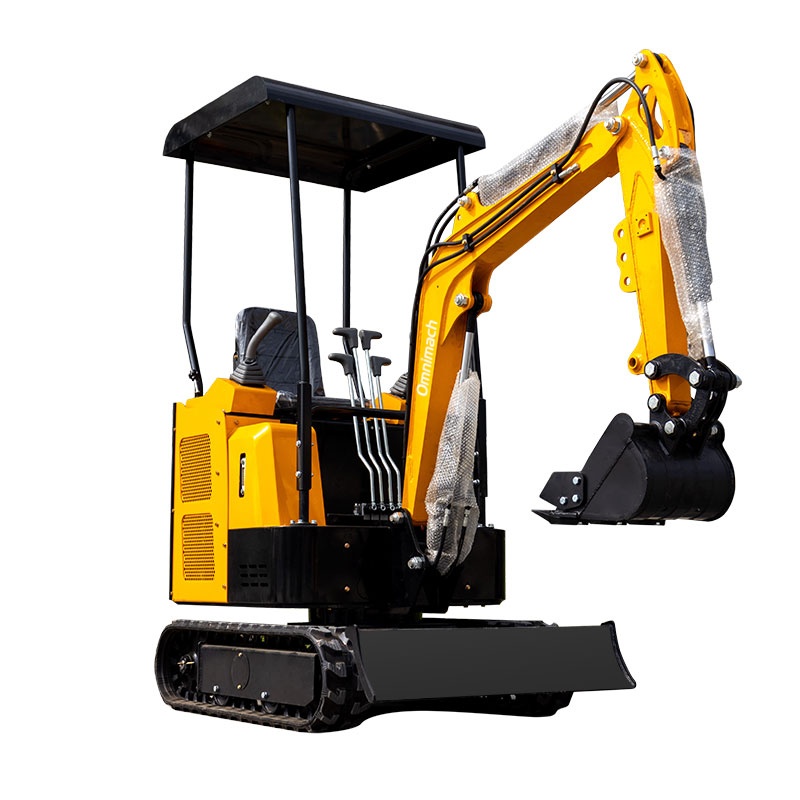

HT15 Mini Excavator
Product Details
1.5T Mini Excavator Description
This mini excavator adopts globally renowned brand components for pneumatic, electrical and operating parts.
It features high automation and intelligent operation with zero pollution.
It can be connected with air conveyor via connectors and work in line with filling machines. We also provide mini excavators of 0.8T, 1T, 1.6T, 1.8T, 2T, 2.2T and 3.5T for your selection.
1.5T Mini Excavator Parameters
| Model: HT15 | Main Dimensions | Working Range | |||||
| Weight | 1300 kg | Overall Dimension (L×W×H) | 2550×940×1380 mm | Digging Depth | 1650 mm | ||
| Bucket Capacity | 0.025 m³ / 120 kg | Wheelbase | 770 mm | Vertical Digging Depth | 1800 mm | ||
| Bucket Width | 380 mm | Total Track Length | 1090 mm | Digging Height | 2610 mm | ||
| Engine | Changchai (EV80) | Platform Ground Clearance | 380 mm | Unloading Height | 1850 mm | ||
| Cylinder Type | 2-Cylinder, Water-cooled | Rear Swing Radius | 733 mm | Digging Reach | 2850 mm | ||
| Rated Power | 12 kW / 3600 rpm | Chassis Width | 940 mm | Swing Radius | 1330 mm | ||
| Displacement | 0.794 L | Track Width | 180 mm | Dozer Blade Lift Height | 345 mm | ||
| Travel Speed | 3.5 km/h | Chassis Ground Clearance | 380 mm | Dozer Blade Digging Depth | 255 mm | ||
| Track Height | 320 mm | ||||||
