Mini excavator

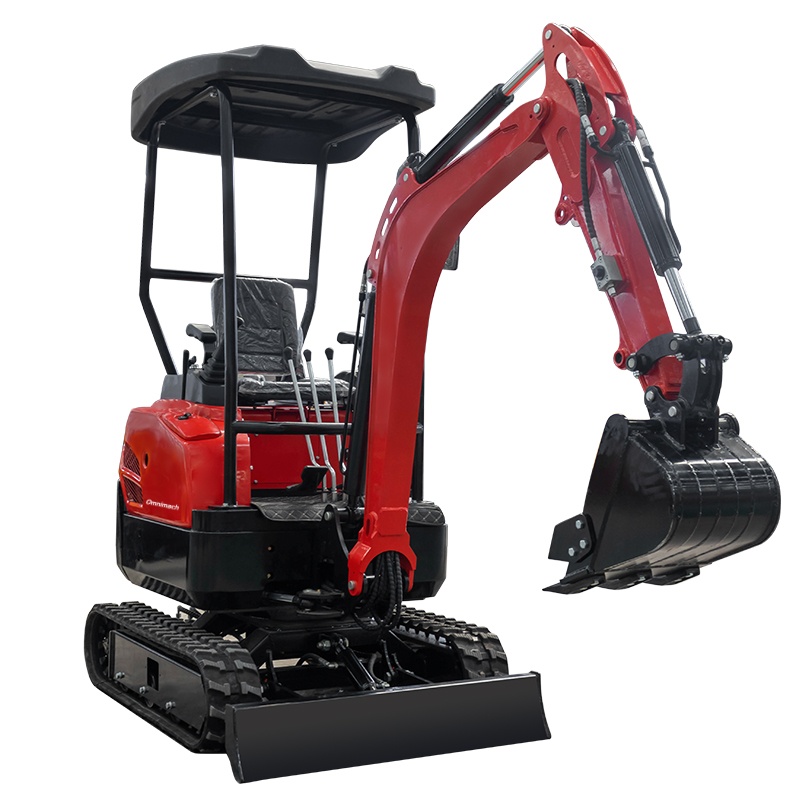

HT18 Mini Excavator
Product Details
Advantages of HT18 Mini Excavator
1. Dual-side hydraulic pilot control
2. Kubota engine with low fuel consumption and reliable quality
3. Swing boom
4. Zero-tail design
5. Rubber track with gear drive for strong grip
6. Inverted boom
7. Throttle valve
8. Instrument panel
9. Drain pipes equipped for travel motor and swing motor
HT18 Mini Excavator Parameters
| HT18 Mini Excavator Specification | |
| Overall Dimensions (Unit: mm) | |
| Total Length / Transport Length A | 4325 / 1655 |
| Overall Width B | 1100 |
| Upper Structure Width D | 990 |
| Overall Height (Cab Top) C | 2272 |
| Standard Track Shoe Width F | 180 |
| Track Gauge G | 920 |
| Ground Clearance H | 119 |
| Rear Swing Radius I | 790 |
| Track Contact Length J | 1050 |
| Total Track Length K | 1545 |
| Performance Parameters | |
| Operating Weight (KG) | 1500KG |
| Bucket Capacity (m³) | 0.02 |
| Rated Power | 10.2KW/2500RPM |
| Swing Speed | 12RPM |
| Gradeability | 30° |
| Working Range (Unit: mm) | |
| Max. Digging Height a | 2580 |
| Max. Unloading Height b | 1637 |
| Max. Digging Depth c | 2060 |
| Max. Digging Reach d | 3160 |
| Swing Radius e | 1711 |
| Height at Min. Swing Radius f | 2048 |
| Left Boom Swing Angle (°) | 75 |
| Right Boom Swing Angle (°) | 45 |
| Main Components | |
| Engine | Kubota D722 / KOOP 292 |
| Main Valve | North |
