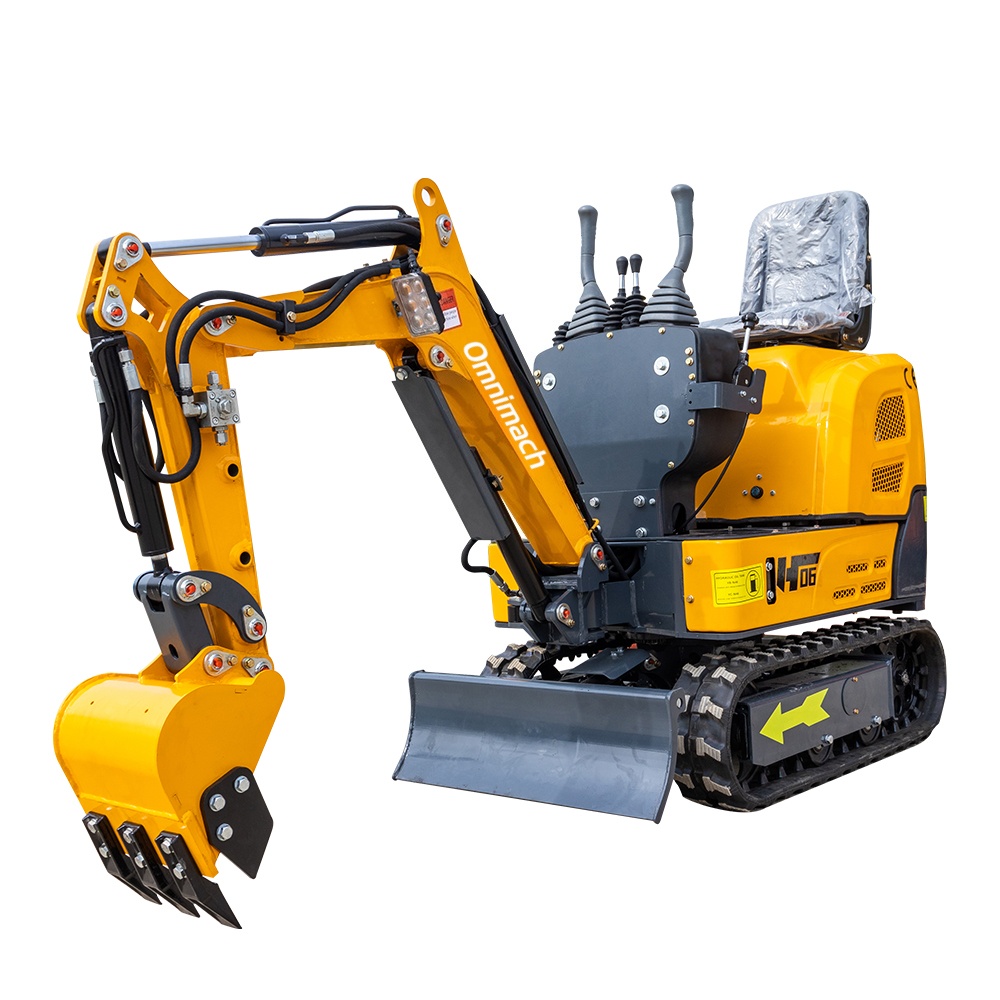

HT06 Micro Excavator
Product Details
HT06 Mini Excavator Introduction
1. Ultra Compact Size, Flexible Passing
l Overall transport length only 1889mm, overall width 700mm, overall height 2086mm
l Easily access narrow spaces such as indoors, courtyards and basements, solving operation pain points of large equipment
l Tail swing radius only 650mm, no worry about collision with surrounding environment during operation, safer for precise work
2. All-Round Operation, Covers Multiple Scenarios
l Max digging height 2017mm, max digging depth 1118mm, max digging reach 2025mm
l Max dumping height 1284mm, min swing radius 1239mm, meets demands of landscaping, interior renovation, pipeline laying and other scenarios
l 30° climbing capacity, easily cope with complex terrain such as construction ramps and courtyard steps
3. Lightweight & Portable, Hassle-Free Transfer
l Operating weight only 600KG, no large trailer required, can be transported by ordinary pickup truck
l Greatly reduce transportation cost and transfer difficulty, suitable for frequent operations on multiple construction sites and projects
l 0.01m³ bucket capacity, accurately control workload and avoid material waste
4. Reliable Core Components, Stable & Durable
l Equipped with Runtong R300 / Briggs & Stratton engine, stable power output and excellent fuel economy
l Tengfei main valve for precise hydraulic control, fast operation response and high efficiency
l High-quality pins with wear resistance, effectively extend machine service life and lower maintenance cost
5. Humanized Details, More Convenient Operation
l Dozer blade ground clearance 92mm, dozer digging depth 93mm, quickly complete site leveling and silt cleaning
l Standard track shoe width 150mm, low ground pressure to avoid damaging lawn, floor tiles and other ground surfaces
l Track ground contact length 782mm, total track length 1126mm, stable driving and anti-rollover
6. Flexible Optional Configurations, Customized on Demand
l Optional rearview mirror: flexible selection according to working scenarios. Simplify configuration to cut cost for open-area work; install mirror to improve vision and safety for complex road conditions.
l Optional cabin frame: remove frame for indoor precision work to fit low spaces; install frame for outdoor work to boost stability, and rain cover can be equipped on frame for more comfortable working.
l Balance practicality and cost control to meet personalized demands of different users
HT06 Mini Excavator Specifications
| HT06 Mini Excavator Specification Table | |
| Overall Dimensions (Unit: mm) | |
| Transport Length A | 1889 |
| Overall Width B | 700 |
| Upper Structure Width D | 700 |
| Overall Height C | 2086 |
| Standard Track Shoe Width F | 150 |
| Track Gauge E | 550 |
| Dozer Blade Ground Clearance G | 92 |
| Dozer Digging Depth H | 93 |
| Tail Swing Radius I | 650 |
| Track Ground Contact Length J | 782 |
| Total Track Length K | 1126 |
| Working Range (Unit: mm) | |
| Max Digging Height a | 2017 |
| Max Height at Min Swing Radius b | 1589 |
| Max Digging Depth c | 1118 |
| Max Digging Reach d | 2025 |
| Min Swing Radius e | 1239 |
| Max Dumping Height f | 1284 |
| Performance Parameters | |
| Operating Weight (KG) | 600 |
| Bucket Capacity (m³) | 0.01 |
| Working Device Type | Backhoe |
| Climbing Capacity | 30° |
| Main Components | |
| Engine | Runtong R300 / Briggs & Stratton |
| Main Valve | Tengfei |
