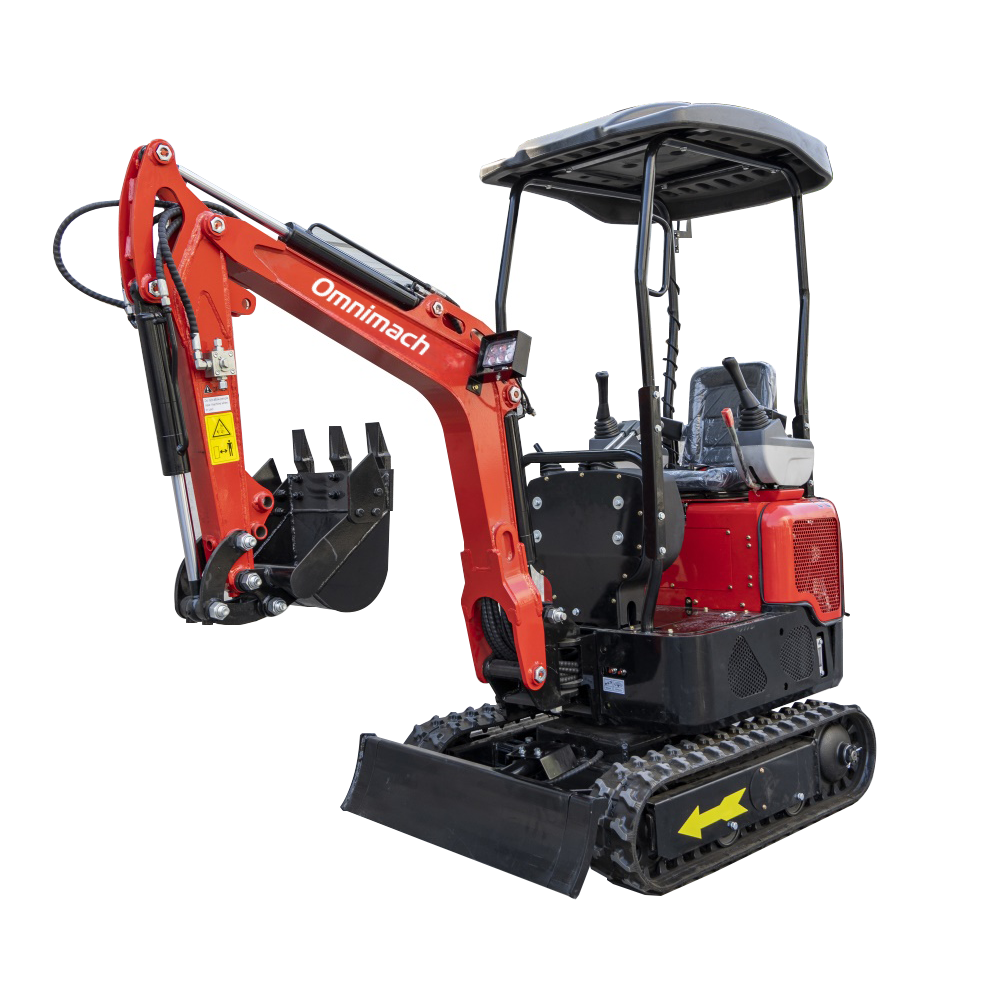

HT12G Mini Excavator
Product Details
HT12G Mini Excavator Operation Instructions
1. Kubota Z482 Engine
Equipped with Kubota Z482 engine, it delivers powerful power output and operates stably under various working conditions.
2. Full Hydraulic Control & Pilot Control
Adopts advanced pilot control system for more precise operation and faster response, improving working efficiency.
3. Chassis Width
The total width is only 930mm, ideal for working in narrow spaces. The rear swing radius is 820mm for excellent mobility.
4. Structural Components
The whole machine goes through shot blasting, acid pickling, phosphating and painting processes to enhance paint adhesion. It is durable, fade-resistant and smooth. Other manufacturers only apply simple polishing and painting, which leads to easy rusting.
HT12G Mini Excavator Parameters
| Model: HT12G | Max. Digging Height: 2455mm |
| Engine: Kubota Z482 | Max. Unloading Height: 1620mm |
| Transport Length: 2380mm | Max. Digging Depth: 1850mm |
| Overall Width: 930mm | Max. Digging Reach: 2920mm |
| Upper Structure Width: 940mm | Min. Radius: 1510mm |
| Overall Height (Cab Roof): 2270mm | Max. Height at Min. Turning Radius: 1930mm |
| Standard Track Shoe Width: 180mm | Operating Weight: 900kg |
| Track Gauge: 750mm | Bucket Capacity: 0.02m³ |
| Dozer Blade Ground Clearance: 110mm | Working Device: Backhoe |
| Dozer Blade Digging Depth: 195mm | Gradeability: 30° |
| Rear Swing Radius: 820mm | |
| Track Contact Length: 890mm | |
| Total Track Length: 1235mm |
