Mini excavator

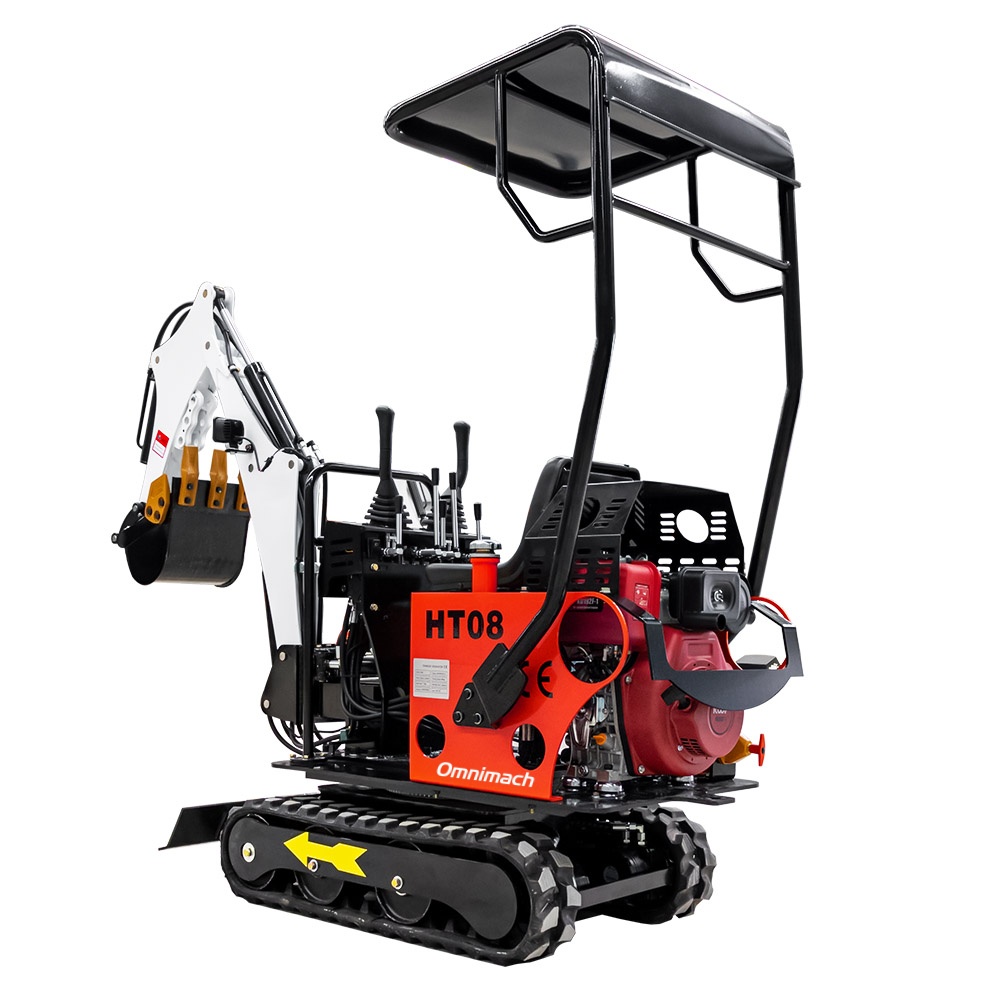

HT08 Mini Excavator

Advantages of HT08 Mini Excavator

1. Unobstructed pipelines before operation.

2. The boom cylinder adopts a well-known brand.

3. All structural parts are finely processed.

4.Completed with shot blasting, pickling and baking processes.

5.High surface gloss and strong coating adhesion.

Performance Parameters		Working Range		Overall Dimensions
Rated Power	12 HP	Max. Digging Reach	2450 mm	Overall Width	720-780 mm
Bucket Capacity	0.025 m³	Max. Digging Depth	1300 mm	Overall Height	1300 mm
Engine Model	Changchai (KD192)	Max. Digging Height	2350 mm	Overall Length	2430 mm
Operating Weight	800 KG	Max. Unloading Height	1600 mm	Chassis Ground Clearance	80 mm
Digging Force	7.5 kN	Digging Radius	1100 mm	Total Track Length	1140 mm
Pump Type	Single Gear Pump	Bulldozing Blade Lifting Height	120 mm	Track Width	150 mm
Rated Working Pressure	14 MPa	Bulldozing Blade Digging Depth	200 mm
Swing Speed	12 rpm	Working Range
Travel Speed	2.2 km/h	Max. Digging Reach	2450 mm
Gradeability	30°	Max. Digging Depth	1300 mm
Ground Pressure	19 KG	Max. Digging Height	2350 mm
