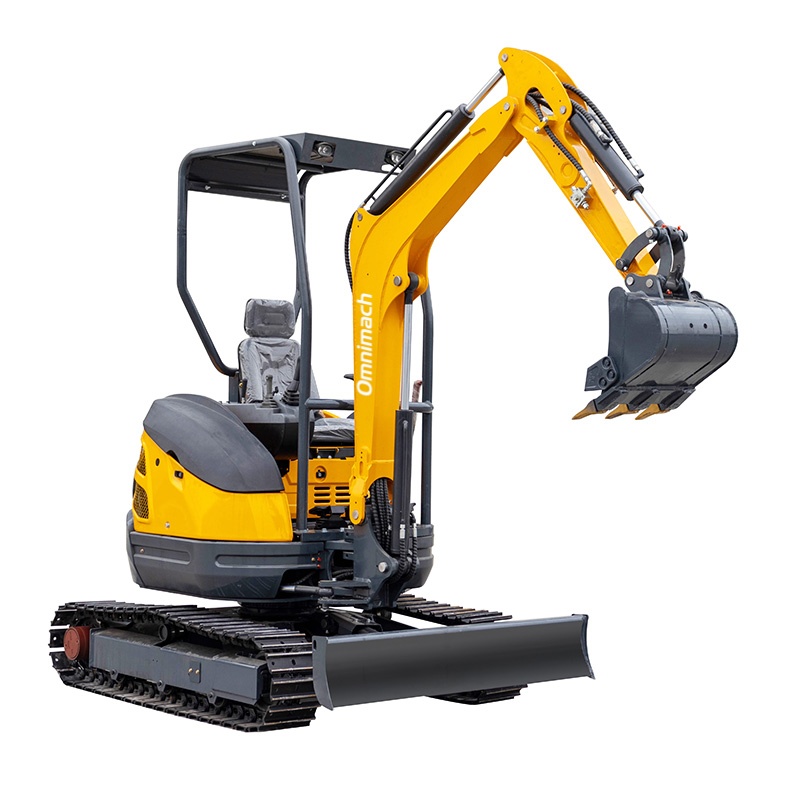

HT25 Mini Excavator
Product Details
HT25 Mini Crawler Excavator Introduction:
High fuel efficiency, super strong
power, lower fuel consumption, high configuration,
excellent performance, energy saving and environmental protection, customized colors available: red, yellow, blue, etc...
HT25 Mini Hydraulic Excavator Features:
The excavator can be equipped with various working devices such as quick coupler, log grapple, ripper, grading bucket, auger,
narrow bucket, etc. Optional roof, radiator and other accessories are available to meet your needs.
We also have 0.8T, 1T, 1.6T, 1.8T, 2T and 2.2T mini excavators for you to choose from!
HT25 Mini Excavator Specifications
Machine Dimensions (Unit: mm) | |
Overall Length / Transport Length | 2870mm |
Overall Width | 1400mm |
Track Gauge | 1150mm |
Ground Clearance | 145mm |
Tail Swing Radius | 700mm |
Track | |
Track Length | 1858mm |
Track Contact Length | 1480mm |
Standard Track Shoe Width | 250mm |
Top Roller/Bottom Roller (per side) | 0/4 |
Performance Parameters | |
Standard Bucket Capacity | 0.036m³ |
Swing Speed | 12 rpm |
Gradeability | 40° |
Operating Weight | 2150kg |
Engine | |
Engine Oil Capacity | 5.1L |
Engine Brand/Power | Kubota D1105 Engine |
Rated Power | Three-cylinder Direct Injection |
Working Range (Unit: mm) | |
Max. Digging Height | 3365mm |
Max. Unloading Height | 2610mm |
Max. Digging Depth | 2045mm |
Vertical Digging Depth | 1725mm |
Swing Radius | 1955mm |
Height at Swing Radius | 2740mm |
