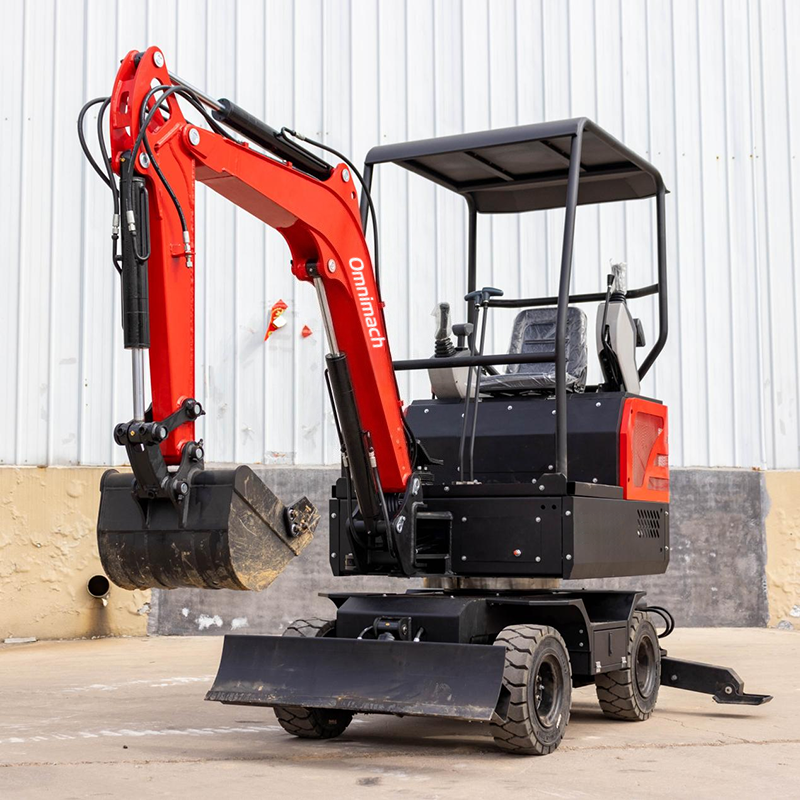

HT20 Mini Excavator
Product Details
HT20 Mini Hydraulic Excavator Description
Retractable tracks and steel tracks are optional.
The front window can be opened and closed freely.
HT20 Mini Hydraulic Excavator Features
1. Temperature Control
It keeps the cab air at a comfortable temperature. The recommended temperature is 25-27℃ in summer and 18-20℃ in winter.
2. Air Volume Adjustment
Temperature adjustment is realized by airflow. Air volume control is essential, as airflow regulation and distribution directly affect the performance of the air conditioning system.
HT20 Mini Excavator Specifications
Machine Dimensions (Unit: mm) | |
Overall Length / Transport Length | 3337/2597 |
Overall Width | 1100 |
Upper Structure Width | 1053 |
Overall Height (Cab Top) | 2325 |
Standard Track Shoe Width | 180 |
Track Gauge | 920 |
Ground Clearance | 119 |
Tail Swing Radius | 1013 |
Track Contact Length | 1050 |
Total Track Length | 1545 |
Performance Parameters | |
Operating Weight (KG) | 1470 |
Bucket Capacity (m³) | 0.02 |
Rated Power | 19KW/2200RPM |
Swing Speed | 12RPM |
Gradeability | 30° |
Working Range (Unit: mm) | |
Max. Digging Height | 2580 |
Max. Unloading Height | 1637 |
Max. Digging Depth | 2060 |
Max. Digging Reach | 3130 |
Swing Radius | 1575 |
Height at Swing Radius | 2075 |
Main Components | |
Engine | Laidong 385 |
