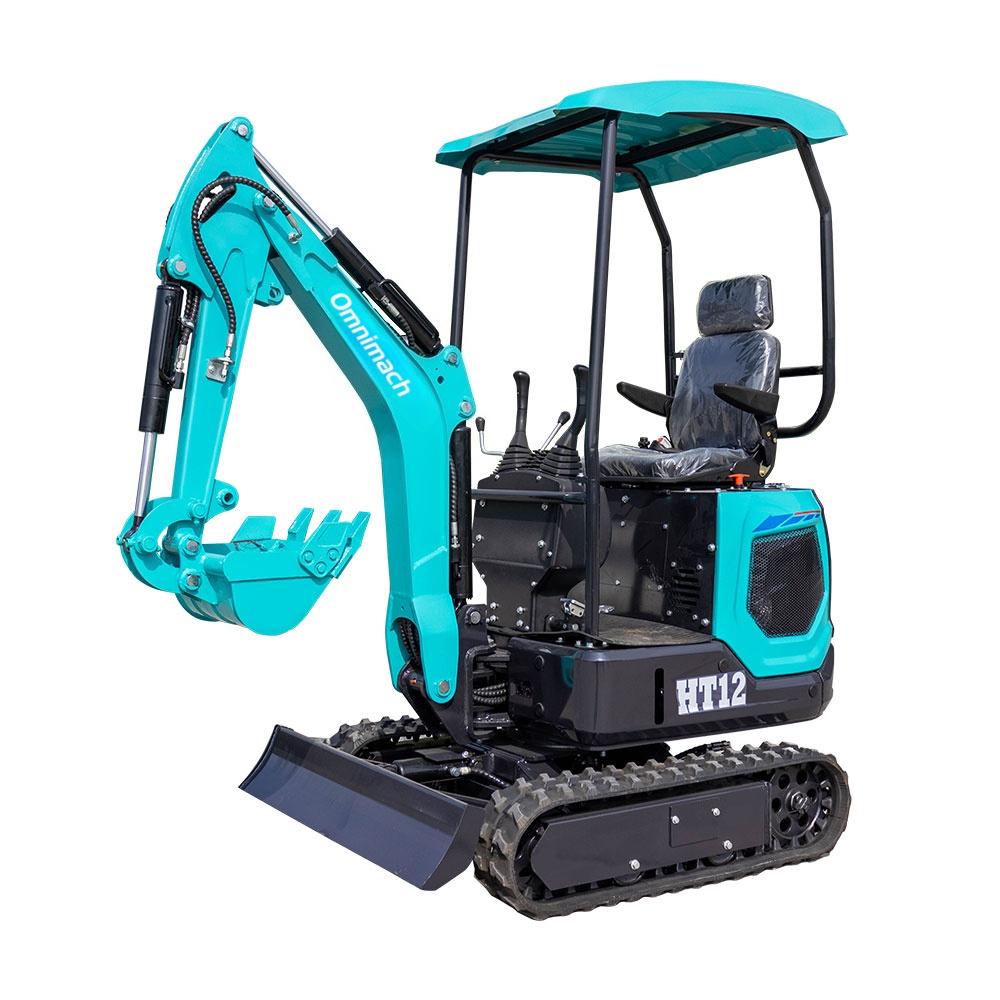

HT12 1200kg Mini Excavator
Product Details
HT12 Mini Excavator Introduction
Quick and easy attachment replacement
Strong power and energy saving
Euro 5, EPA, CE, ISO Certificates
Optional: Swing boom, retractable tracks.
HT12 Mini Excavator New Upgrade for Better and More Comfortable Experience
Application Scenarios
This excavator is widely used in various working conditions.
Earthwork
River regulation
Building demolition
Pond digging
Road construction
Orchard excavation
HT12 Attachments
Hydraulic, Bucket
Standard bucket, grapple, thumb bucket, semi-automatic bucket, sand bucket, rake, quick coupler
Ripper, Auger, Hydraulic breaker, Root rake
01- Hydraulic tank capacity is 25L, 6L larger than competitors, extending continuous working time in hot weather.
02- Compact design with only 940mm width, easily passing through most doorways and entering buildings.
03- All structural parts go through shot blasting, pickling, phosphating and painting processes to enhance paint adhesion for better durability, anti-fading and smoother surface. Other manufacturers only do simple polishing and painting, which leads to easy rusting.
04- All hydraulic hoses are imported from Continental AG, Germany.
Other hydraulic components and tracks are supplied by well-known domestic manufacturers.
05- Dozer blade effectively protects the machine body, improves working efficiency and enhances operation safety.
06- Equipped with reputable domestic KOOP 192F engine for strong power and stable performance. The Koop engine also meets European emission standards.
HT12 Mini Excavator Specifications
| Model: | HT12 Series |
| Engine: | Brand engine |
| Engine Power: | 7KW |
| Operating Weight | 1200 kg |
| Bucket Capacity: | 0.02 m³ |
| Track Width: | 180 mm |
| Track Length: | 1200 mm |
| Bucket Width: | 400 mm |
| Max. Digging Height: | 2500 mm |
| Max. Digging Depth: | 1700 mm |
| Transport Length: | 2100 mm |
| Max. Unloading Height: | 1820 mm |
| Overall Height: | 2150 mm |
| Ground Clearance: | 380 mm |
| Track Gauge | 580 mm |
| Chassis Width | 940 mm or 1100 mm |
| Machine Dimensions: | 2200 * 940 * 2150 mm |
| Optional Features: | Swing Boom |
| Retractable Tracks | |
| Cabin | |
| Pilot Control |
