HT35 Mini Excavator
Product Details

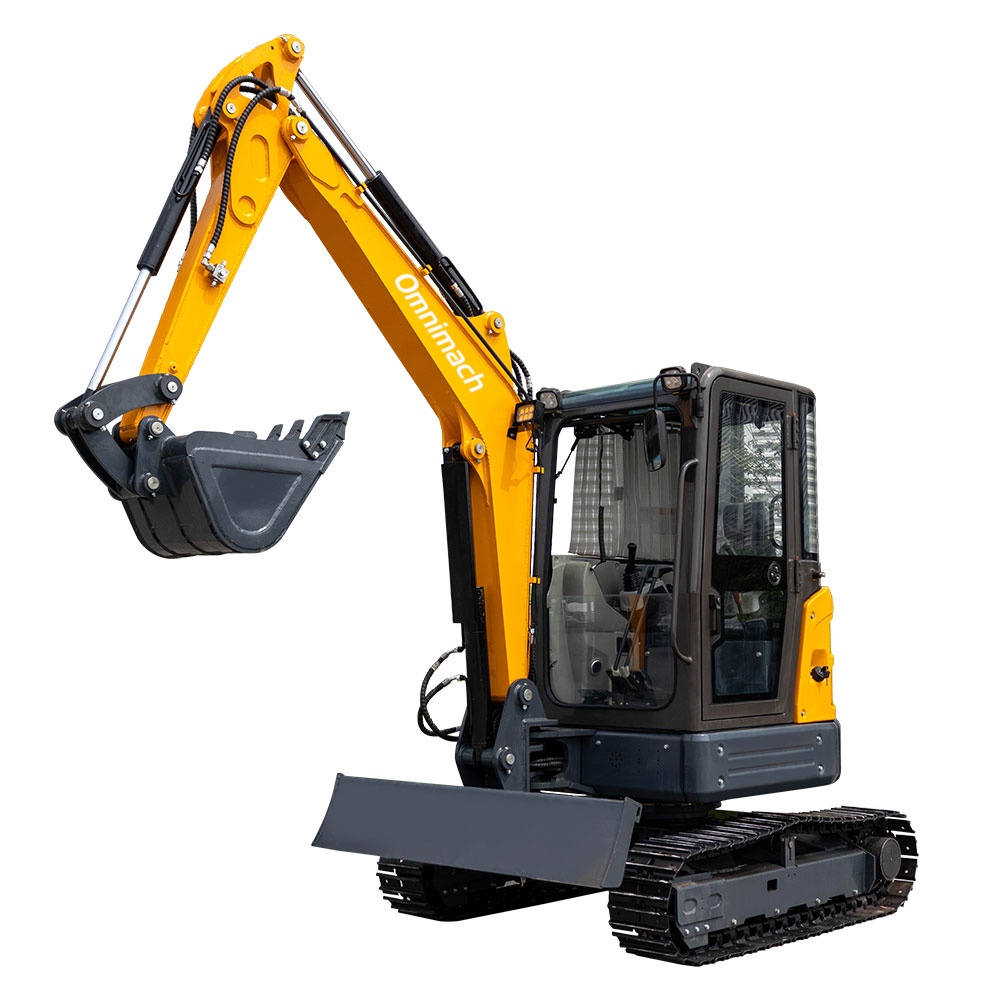

3.5T Mini Excavator Description
The 3.5-ton excavator is available in both crawler and wheel types, reliable and easy to operate. It features multiple functions including digging, grabbing, drilling, bulldozing, ditch cleaning, and rock breaking, widely used in various construction projects such as water supply, power supply, gas supply, telecommunication networks, farmland, and garden engineering.
3.5T Mini Excavator Specifications
| Overall Dimensions (Unit: mm) | |
| Overall Length / Transport Length A | 5029mm |
| Overall Width B | 1720mm |
| Upper Structure Width D | 1554mm |
| Overall Height (Canopy/Cab Top) C | 2580 |
| Standard Track Shoe Width F | 300mm |
| Minimum Ground Clearance H | 319mm |
| Tail Swing Radius I | 885mm |
| Track Contact Length J | 1645mm |
| Track Length K | 2150mm |
| Dozer Blade Height from Ground R | 393mm |
| Dozer Blade Digging Depth T | 461mm |
| Performance Parameters | |
| Operating Weight (KG) | kg |
| Bucket Capacity (m³) | 0.12m³ |
| Rated Power | 18.5KW/2200rpm |
| Swing Speed | 9r/min |
| Gradeability | 58% |
| Bucket Digging Force | 30.4KN |
| Arm Digging Force | 18.2KN |
| Working Range (Unit: mm) | |
| Max. Digging Height a | 4938mm |
| Max. Unloading Height b | 3376mm |
| Max. Digging Depth c | 3106mm |
| Max. Digging Reach d | 5175mm |
| Minimum Swing Radius e | 2634mm |
| Max. Height at Minimum Swing Radius f | 3716mm |
