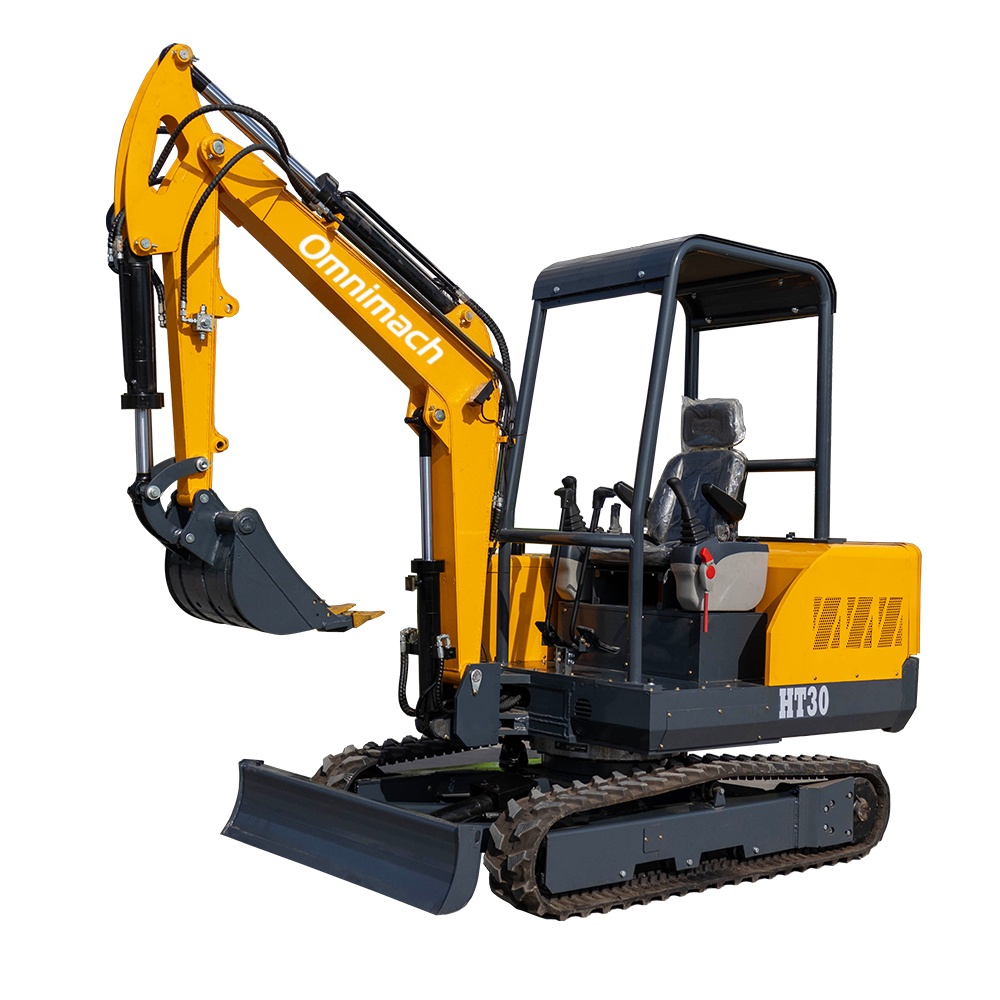

HT30 Mini Excavato
Product Details
HT30 Mini Excavator Specifications
| Overall Dimensions (Unit: mm) | |
| Overall Length / Transport Length A | 4365 |
| Overall Width B | 1338 |
| Upper Structure Width D | 1354 |
| Overall Height (Cab Top) C | 2364 |
| Standard Track Shoe Width F | 230 |
| Track Gauge G | 1090 |
| Minimum Ground Clearance H | 197 |
| Tail Swing Radius I | 1265 |
| Track Contact Length J | 1570 |
| Track Length K | 1926 |
| Dozer Blade Height from Ground R | 245 |
| Dozer Blade Digging Depth T | 300 |
| Performance Parameters | |
| Operating Weight (KG) | 2420 |
| Bucket Capacity (m³) | 0.036 |
| Rated Power | 19KW/2250RPM |
| Swing Speed | 10RPM |
| Gradeability | 30° |
| Working Range (Unit: mm) | |
| Max. Digging Height a | 3397 |
| Max. Unloading Height b | 2200 |
| Max. Digging Depth c | 2620 |
| Max. Digging Reach d | 4098 |
| Minimum Swing Radius e | 2097 |
| Max. Height at Minimum Swing Radius f | 2781 |
| Main Components | |
| Engine | Branded Engine |
| Main Valve | DL40H30H0-d10L-4TH3TT-2YSYH2YSHY-3CGH3CHC-CGCGHCGCHC |
| Swash Plate Axial Piston Variable Pump | PVD-1B-32P-11G5 |
| Travel Motor | Eaton Hydraulic Motor + Reducer |
| Fuel Tank | Capacity: 38L |
| Cooling System | Capacity: 5.05L |
| Hydraulic Tank | Capacity: 40L |
| Three-cylinder Direct Injection | Rated Power: 19KW/2250RPM (Engine Oil Capacity: 5.1L) |
| Working Pressure: 18Mpa | System Flow: 100L/min |
| Displacement: 16+16+10.5+4.5ml | Max. Rotation Speed: 2500r/min |
| Displacement: 195 | Travel Speed: 2.7km/h |
