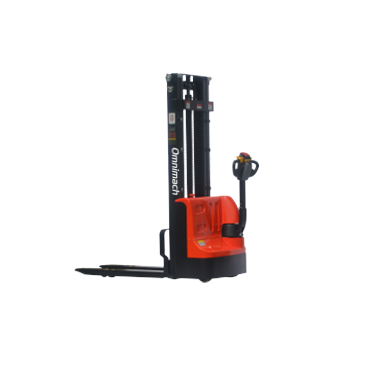

Electric Stackers

CL1020J

1.Side drive design, effectively reduce the operation channel,small turning radius, better field of view, suitable for operation in narrow space;

2.The operation handle is extended for walking vehicles, which is in line with the principle of ergonomics, and is comfortable;

3.Key switch, electric meter, up and down button, turtle speed switch are integrated in the operation handle, easy to operate;

4.External charger, better heat dissipation performance, avoiding the damage caused by the built-in charger due to vibration when the vehicle is running ;

5.German original imported waterproof micro switch, adapt to cold, humid ,dusty and other harsh environment;

6.Permanent magnet motor drive system, small size, light quality, small loss, high efficiency;

7.Installed high-density wire protective net, braided and welded, strong and durable, excellent protection effect;

Product Details

CharacteristicsModel
CL1030JCL1016D
Power unit
electric
Operation
 Pedestrian
Rated traction weightQ (t)1
Load centrec (mm)600
Axle centre to fork facex (mm)780
Wheel basey (mm)12301100
WeightsService weight with batterykg465406
Wheels/TyresWheels type
PU
Driving wheel sizeΦ×w(mm) Φ210×70
Bearing wheel size Φ×w(mm) Φ80×70
additional wheels(dimensions)Φ×w(mm) Φ150×58
Wheels, number front/rear (x = driven)
1x+1/4
Track widthb10 (mm)516
Track widthb11 (mm)535
×
