Internal Combustion Forklifts

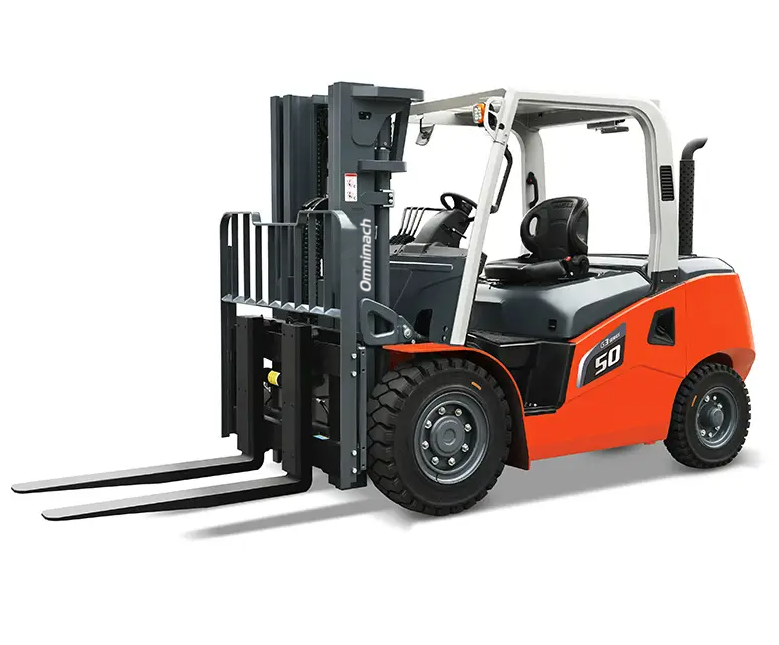

5-10 ton G3 Series Diesel Forklift Truck
1. New appearance, fashionable atmosphere, taking into account aesthetics and function;;
2. ZF manual transmission electro-hydraulic proportional control ensures efficient transmission operation;
3. Wet axle with long maintenance cycle, convenient maintenance；
4. Fingertip operating system, comfortable and convenient operation, reducing operation fatigue;
5. Electronic parking brake, preventing accidental contact, always guarding driving safety.
Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.
Product Details
| MODEL | CPCD50 | CPCD60 | CPCD70 | CPCD85 | CPCD100 | |
| Load Capacity | ton | 5 | 6 | 7 | 8.5 | 10 |
| Load Center | mm | 600 | ||||
| Wheel base | mm | 2300 | 2300 | 2300 | 2500 | 2775 |
| Overall height(overhead guard) | mm | 2450 | 2450 | 2450 | 2560 | 2560 |
| Overall length(without fork) | mm | 3485 | 3575 | 3645 | 3952 | 4202 |
| Overall width | mm | 2045 | 2045 | 2045 | 2165 | 2165 |
| Min.outside turning radius | mm | 3225 | 3280 | 3340 | 3630 | 3940 |
